Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Hot Chamber Die Casting Machine |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Installation | Color: | Optional Color |
| Keywords: | Die Casting Machine | Function: | Making Parts |
| Machine Type: | Full Automatic | Voltage: | 380V |
| High Light: | 380V Die Casting Machine Parts,CE Die Casting Machine Parts,380V die casting parts |
||

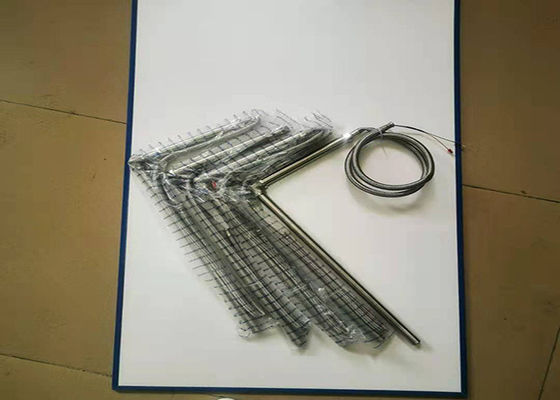

Zinc Die Casting Machine Spare Parts For Temperature Sensor
Product Decription:
This product is to inspect temperature which is important of the machine part.
hot chamber die casting machine specification
| Item | Unit | RDH18 | RD38T | RD50T | RD88T | RD138T | |||
| Die Locking Force | KN | 180 | 380 | 500 | 880 | 1380 | |||
| Die Stroke | MM | 150 | 200 | 235 | 250 | 290 | |||
| Ejection Fore | KN | / | 34 | 52 | 52 | 110 | |||
| Ejection Stroke | MM | / | 40 | 60 | 60 | 85 | |||
| Die Thickness(Min~Max) | MM | 100-300 | 100-330 | 100-340 | 100-350 | 150-450 | |||
| Die Dimension | MM | 385×360 | 450×480 | 470×503 | 535×578 | 620×670 | |||
| Tie-bar Inner Spacing(V×H) | MM | 236×236 | 290×290 | 310×310 | 357×357 | 415×415 | |||
| Tie Bar Diameter | MM | 40 | 50 | 56 | 63 | 75 | |||
| Injection Port Position | MM | / | 0,-40 | 0,-50 | 0,-60 | 0,-80 | |||
| Injection Stroke | MM | 90 | 125 | 130 | 130 | 150 | |||
| Traverse Stroke | MM | 150 | 150 | 190 | 190 | 200 | |||
| Injection Fore | KN | 27 | 40 | 55 | 90 | 110 | |||
| Plunger Tip Diameter | MM | 35 | 40 | 45 | 50 | 55 | 50 | 60 | 65 |
| Specific Presure | Mpa | 28 | 32 | 25.4 | 26.9 | 22.2 | 34 | 38.9 | 33.1 |
| Shot weigh(Zn) | kg(Zn) | 464 | 0.78 | 0.98 | 1.26 | 1.53 | 1.26 | 2.1 | 2.46 |
| Hydraulic Pressure | Mpa | 7 | 10.5 | 10.5 | 10.5 | 14 | |||
| Electric Motor Capacity | KW | 5.5 | 7.5 | 7.5 | 11 | 15 | |||
| Volume of Crucible(Zn) | L/kg(Zn) | 20/150 | 50/325 | 55/360 | 55/360 | 55/360 | |||
| Volume of Oil | L | 180 | 200 | 200 | 240 | 300 | |||
| Machine Weight | TON | 1.5 | 3 | 3.4 | 3.6 | 6 | |||
| Over All Dimensions | m(L×W×H) | 2.5×1.2×1.7 | 3.47×1.3×1.7 | 3.95×1.38×1.9 | 3.95×1.38×1.9 | 4.51×1.51×2.3 | |||
| Item | Unit | RD160T | RD200T | RD300T | RD400T | ||||
| Die Locking Force | KN | 1600 | 2000 | 3000 | 4000 | ||||
| Die Stroke | MM | 340 | 390 | 460 | 550 | ||||
| Ejection Fore | KN | 110 | 110 | 150 | 180 | ||||
| Ejection Stroke | MM | 85 | 100 | 95 | 125 | ||||
| Die Thickness(Min~Max) | MM | 150-550 | 200-580 | 250-660 | 300-750 | ||||
| Die Dimension | MM | 670×670 | 760×760 | 870×870 | 1030×1030 | ||||
| Tie-bar Inner Spacing(V×H) | MM | 465×465 | 510×510 | 560×560 | 620×620 | ||||
| Tie Bar Diameter | MM | 80 | 90 | 110 | 130 | ||||
| Injection Port Position | MM | 0,-80 | 0,-100 | 0,-125 | 0,-125 | ||||
| Injection Stroke | MM | 150 | 175 | 200 | 230 | ||||
| Traverse Stroke | MM | 200 | 214 | 255 | 340 | ||||
| Injection Fore | KN | 110 | 130 | 158 | 182 | ||||
| Plunger Tip Diameter | MM | 60 | 65 | 70 | 75 | 70 | 75 | 70 | 80 |
| Specific Presure | Mpa | 38.9 | 33.1 | 34.6 | 30.1 | 41.1 | 35.8 | 48.3 | 37 |
| Shot weigh(Zn) | kg(Zn) | 2.1 | 2.46 | 3.33 | 3.83 | 3.81 | 4.37 | 4.4 | 5.7 |
| Hydraulic Pressure | Mpa | 14 | 14 | 14 | 14 | ||||
| Electric Motor Capacity | KW | 15 | 18.5 | 18.5 | 22 | ||||
| Volume of Crucible(Zn) | L/kg(Zn) | 55/360 | 110/720 | 110/720 | 200/1350 | ||||
| Volume of Oil | L | 300 | 400 | 600 | 800 | ||||
| Machine Weight | TON | 6.5 | 8.5 | 11 | 17.5 | ||||
| Over All Dimensions | m(L×W×H) | 4.8×1.51×2.3 | 5.6×1.7×2.4 | 5.6×1.7×2.4 | 7.4×1.9×2.55 | ||||
FAQ
Q. Can you make my designs?
A: Yes, OEM/ODM is welcome, pls feel free to send us pictures.
Q. Can I place mix order?
A: Yes, you can mix colour and style in our stock items.
Q. What is the quality of your product?
A: We specialized in high quality products.
Q. When can I get the price?
A: We will try our best to account you a competitive price as soon as we get your quotation.
Q. What do you need before giving the prices?
A: We need your detail request , like products detail dimensions, surface treatment, quantity as well as your
detail address ,so that we could give you the price by FOB or CIF price.
Q. Can I get discounts?
A: Yes, for big order, old customer and regular customers, we give reasonable discounts.
Q. Which Shipment way is available?
By sea to your nearest port.
By air to your nearest airport.
By express (DHL, UPS, FEDEX, TNT, EMS) to your door.
Machine Spare Parts:
Machine Photo:
Machine Robot:
Factory:
Different spare parts:
Packing:
Shipping Ways:
Thanks for visiting our information, if you are interested in our products, just contact us, have a nice day!
